Front and rear mudguard

4 -	Front and rear mudguard

1	Front mudguard

2	Nylon washer

3

4	Rear mudguard

5

Spare parts catalogue


Frame
Swingarm and chain

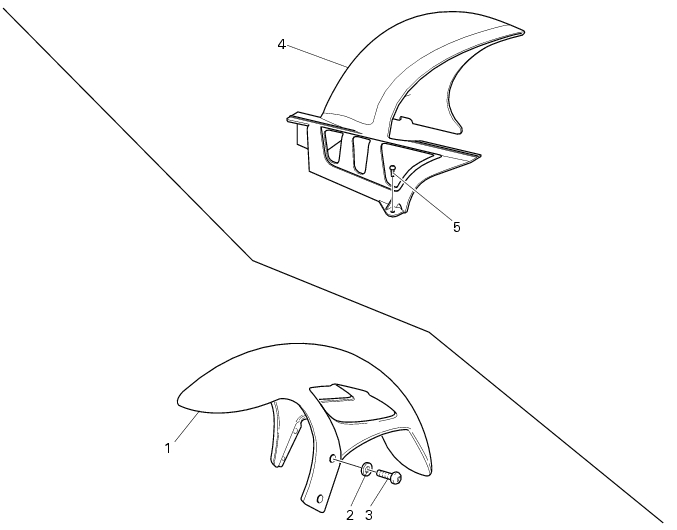

Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear in the figures near the text.

Removing the front mudguard

Unscrew the retaining screws (3).

Remove the retaining screws (3) and their nylon washers (2).

Remove the front mudguard (1).

The USA versions fit a cat's eye on front mudguard (1).

Refitting the front mudguard

Do not ride the motorcycle without the front mudguard, or the brake hoses might touch the wheel under braking.

Apply threadlocker to the screws (3).

Position the front mudguard (1) and start the retaining screws (3) complete with their washers (2) in their holes.

Tighten the screws (3) to the specified torque (Sect. C 3, Frame torque settings).

Removing the rear mudguard

Unscrew the four screws (5) and detach the mudguard (4) from the swingarm.

Refitting the rear mudguard

Fit the rear mudguard (4) and tighten the four screws (5).
