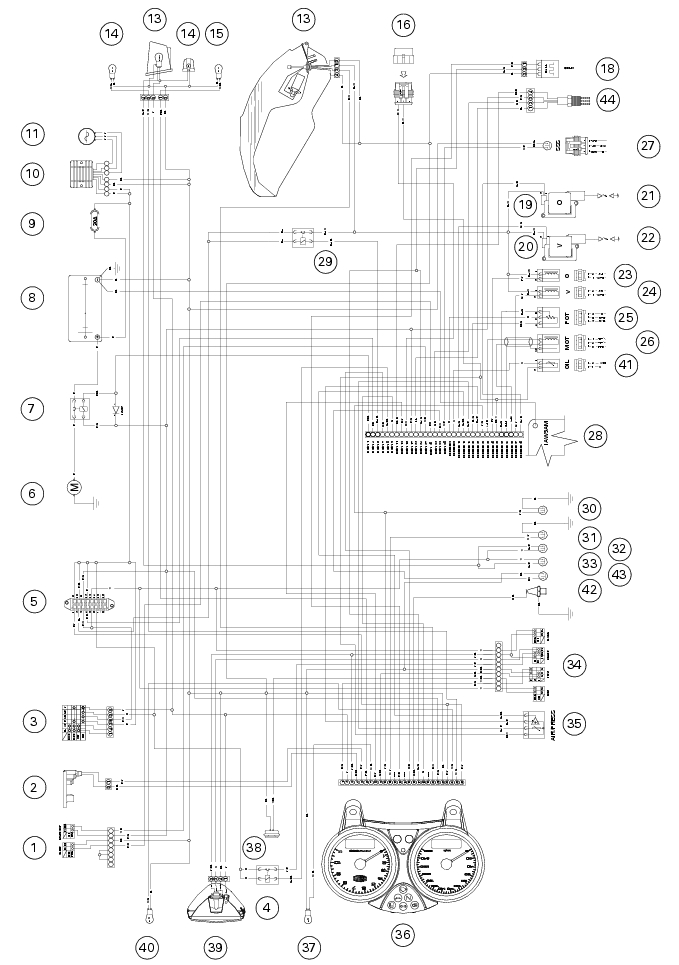

Wiring diagram

1 -	Wiring diagram

Wiring diagram key

RH switch

2	Transponder antenna

3	Key-operated switch

4	Lights relay

Fuse box

6	Starter motor

7	Starter contactor

Battery

9	Regulator fuse

Regulator

Generator

12	Rear right turn indicator

13	Tail light

14	Number plate light

15	Rear left turn indicator

Tank

17	Self-diagnosis outlet

18	Speed sensor

19	Horizontal cylinder coil

20	Vertical cylinder coil

21	Horizontal cylinder spark plug

22	Vertical cylinder spark plug

23	Horizontal cylinder injector

24	Vertical cylinder injector

25	Throttle position sensor

26	Rpm/timing sensor

27	Side stand switch

28	Control unit

29	Injection relay

30	Neutral switch

31	Oil pressure switch

32	Rear stop light switch

33	Front stop light switch

LH switch

35	Air temperature / pressure sensor

36	Instruments (instrument panel)

37	Front turn indicator

Horn

Headlight

40	Front right turn indicator

41	Control unit oil temperature sensor

42	Instrument oil temperature sensor

43	Clutch switch

44	Lambda sensor

Wire color coding - wiring diagram

B Blue

Bk Black

Bn Brown

G Green

Gr Grey

Lb Light blue

O Orange

P Pink

R Red

V Violet

W White

Y Yellow

Legend of fuse box


Position	Description	Rating
1-9	Instrument panel	5A
2-10	Injection	20A
3-11	Key sense	10 A
4-12	Ecu	5A
5-13	Loads	15 A
6-14	Parking lights, high and low beam	15 A
7-15	Spare	20A
8-16	Spare	5A

Arrangement of wiring on frame

Routing of wiring has been optimized to ensure the minimum obstruction.

Each section is designed to prevent interference with parts that might damage wires or cause operating failures when riding. The diagrams on the following pages show the origins (“0” points) for cables proper re-routing and cable ties locations.

Each figure includes references to the diagrams showing the cable routing or the item it will have to be connected to.


Position		Description
1	Diagram A	Horizontal injector connector
2	Diagram A	Control unit oil temperature connector
3	Diagram B	Immobilizer antenna
4	Diagram B	Key switch connector
5	Diagram B	Immobilizer antenna connector
6	Diagram B	Horn connectors
7	Diagram C	Horizontal coil connectors
8	Diagram C	Injection/lights relays
9	Diagram C - Diagram D	Side stand
10	Diagram C	Vertical injector connector
11	Diagram D	Generator cable
12	Diagram C - Diagram D	Lambda sensor
13	Diagram E	Fuel pump/tank sensor
14	Diagram E	Regulator
15	Diagram E	Vertical coil connectors
16	Diagram F	Battery negative terminal
17	Diagram F	“Body” control unit connector
18	Diagram F	Self-diagnosis connector
19	Diagram F	Battery positive terminal
20	Diagram F	“Engine” control unit connector
21	Diagram F	Pick-up cable
22	Diagram F	Solenoid starter - Starter motor
23	Diagram F	Fuse box
24	Diagram F	Control unit ground
25	Diagram F	Engine ground
27	Diagram G	Regulator fuse (for versions with plastic fuel tank)
28	Diagram G	Throttle position sensor connector
29	Diagram H	Pick-up connector
30	Diagram H	RPM/timing sensor (pick-up)
31	Diagram J	Contactor / starter motor cable
32	Diagram J	Oil pressure switch connector
33	Diagram J	Instrument panel oil temperature sensor
34	Diagram J	Rear stop light connector
35	Diagram J	Neutral switch connector
36	Diagram K	Main wiring / rear wiring harness connector
37	Diagram L	Vertical head coil cable
38	Diagram M	Horizontal head coil cable
39	Diagram N	Left switch cable
40	Diagram P	Instrument panel connector
41	Diagram P	Air temperature and pressure sensor
42	Diagram P	Headlight connector
43	Diagram P	Front left turn indicator connection
44	Diagram P	Front brake light switch connection
45	Diagram P	Right switch connector
46	Diagram P	Front right turn indicator connection
47	Diagram P	Rear brake switch
48	Diagram Q	Speed sensor connector
49	Diagram Q	Speed sensor
50	Diagram J	Contactor
