Seat

3 -

1

2	Helmet anti-theft cable

3

4

5

6

7

8	Special screw

9

10

11	Side body panel

12

13

14

15

16	Splashguard

Spare parts catalogue


Seat
Frame

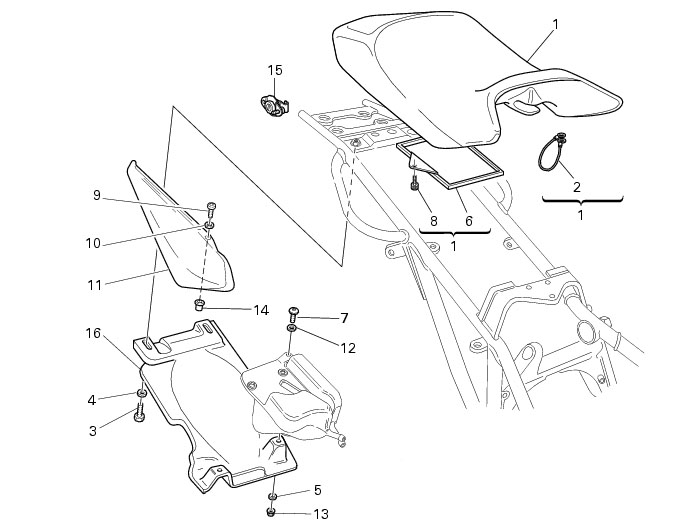

Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear in the figures near the text.

Removing the seat

Release the lock (15) and lift the seat.

Remove the complete seat (1).

Disassembling the seat

Unscrew the screw (8) placed under the seat and remove the cover (6) to access the tool kit.

Reassembling the seat

Refit the cover (6) and tighten the screw (8).

Tighten the screw (8) to the specified torque (Sect. C 3, Frame torque settings).

Refitting the seat

Insert the seat (1) and press until the lock (15) becomes engaged.

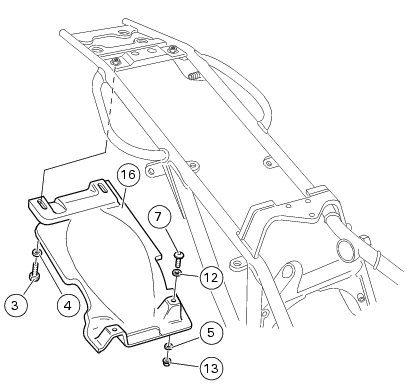

Removing the splash guard

Remove the seat as described under "Removing the seat" in this section.

Loosen and remove the screws (3). Collect the washers (4).

Undo the nuts (13) and collect the washers (5).

The screw (7) remains on oil breather tank (A).

Remove the screw (7) from oil breather tank (A).

Withdraw the splashguard (16) in a rearward motion.

Refitting the splash guard

Insert the splashguard (16) from the rear end of the motorcycle.

Fit the screw (7) with washer (12) to the oil breather tank front hole (A).

Position the washer (5) and tighten the nut (13) on the screw (7).

Start the screws (3) with their washers (4) in their holes and tighten the screws (3) to the specified torque (Set. C 3, Frame torque settings).

Refit the seat as described under Refitting the seat in this section.

Removing the side body panels

Remove the seat as described under "Removing the seat" in this section.

Loosen the four screws (9) securing the side body panels (11) to the frame, keep the washers (10) and inserts (14).

Remove the right-hand and left-hand side body panels (11).

Refitting the side body panels

Refit the RH and LH side body panels (11), fit the inserts (14) and the washers (10) and start the screws (9) in their threads.

Tighten the screws (9) to the specified torque (Sect. C 3, Frame torque settings).

Refit the seat as described under "Refitting the seat" in this section.
