2.3 -

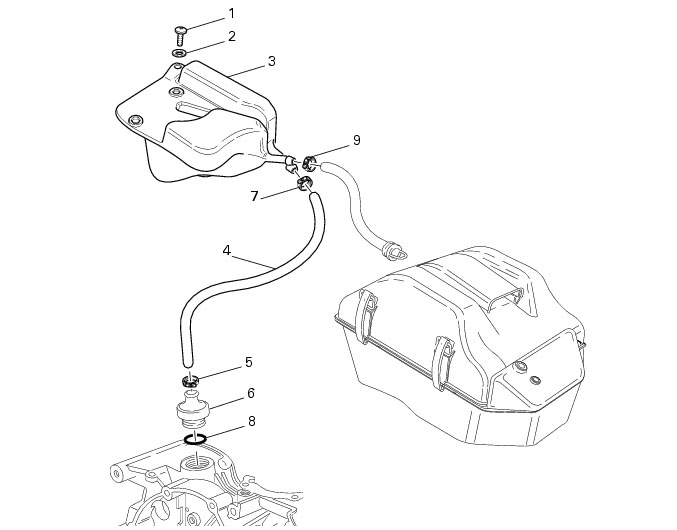

Lubrication system: oil breather reservoir
1
Screw
2
Washer
3
Oil breather tank
4
Hose
5
Clamp
6
Oil breather valve
7
Clamp
8
O-ring
9
Clamp
Spare parts catalogue
Air inductio and oil vent
Caution
Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear in the figures near the text.
Removing the oil breather tank

Operations
Reference See Section
Remove the seat
E 3, Removing the seat
Remove the fuel tank
L 2, Removing the fuel tank
Loosen the clip (7) of the connection hose to the airbox and disconnect hose.
Loose the clip (9) of the connection hose (4) to the oil breather valve (6) and disconnect hose from the oil filter valve.
Loosen the clip (5) of the connection hose to the oil breather valve and disconnect hose (4).
Unscrew the retaining screw (1) of the oil breather valve tank (3) and collect the washer (2).
The oil breather valve tank (3) can now be removed.
Release and remove the oil breather valve (6) from the engine.
Check the O-ring (8) and replace as required.
Refitting the oil breather tank
In particular, in case hose (4) is changed, we recommend you to secure it to oil breather reservoir (3) by tightening clamp (7) to the specified torque (Sect. C 3, Frame torque settings), and then to secure it to breather valve (6) tightening clamp (5) to the specified torque (Sect. C 3, Frame torque settings).
Installation is a reversal of the removal procedure.
Note
On refitting, grease the O-ring (8) with the specified grease.
Note
During removal and installation, keep the hose clips orientated as originally fitted.

Operations
Reference See Section
Refit the fuel tank
L 2, Refitting the plastic fuel tank
Refit the seat
E 3, Refitting the seat
