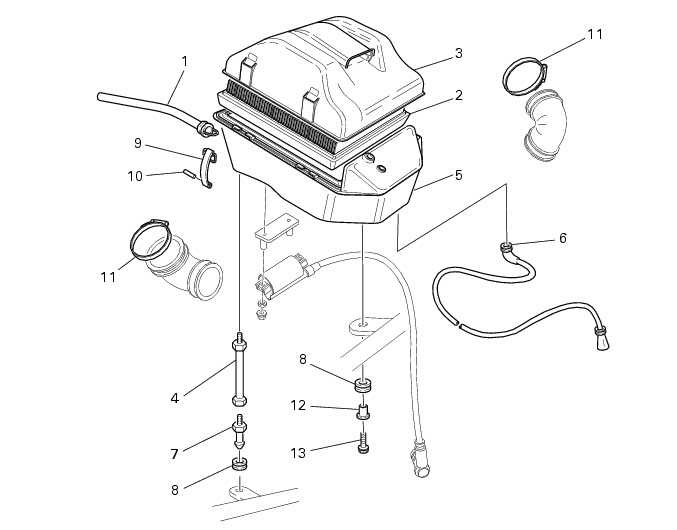

Airbox

7 -

1	Filter-to-tank outlet hose

2	Filter element

3	Airbox cover

4

5	Filter housing

6

7

8	Rubber block

9

10

11

12

13

Spare parts catalogue


Inlet dict
Electric system
Air inductio and oil vent

Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear in the figures near the text.

Removing the airbox


Operations	Reference See Section
Remove the fuel tank	L 2, Removing the fuel tank

Disconnect the coil connector at the main wiring harness end (Sect. P 1, Arrangement of wiring on frame).

Release the clips (9).

Remove the cover (3).

If necessary, disconnect the pins (10) to remove the cover (3) hooks (9).

Extract the filter element (2).

Withdraw the oil breather hose (1) from the filter housing (5).

Loosen the hose clips (11) and withdraw the hoses from the housing.

Loosen the screw (13), collect the spacer (12).

Lift the complete filter housing. Be sure to collect the rubber blocks (8) of the stud bolts securing the housing to the frame.

Remove the drain hose (6) from the filter housing (5).

Unscrew the pegs (7).

Unscrew the stud bolts (4).

See Sect. M 3, Coil, for coil (A) removal.

Refitting the airbox

Position the coil (A) to the filter housing (Sect. M 3, Coil).

If removed, fit the pins (10) to refit the cover (5) hooks (9).

Start the stud bolts (4) in their holes on the air box (5) and tighten them to the specified torque (Sect. C 3, Frame torque settings).

Start the two pegs (7) on the box (5) stud bolts (4).

Tighten the pegs (7) to the specified torque (Sect. C 3, Frame torque settings).

Insert the drain hose (6) in the hole (B) in the airbox.

Position the complete housing so that the stud bolts (4) locate into the rubber blocks (8) in the frame.

Screw in the screw (13) with relevant spacer (12) onto filter housing (5) and insert it in the relevant rubber block (8) on the frame.

Tighten the hose clips (11) to the specified torque (Sect. C 3, Frame torque settings) to secure the hoses to the filter housing (5).

Insert the oil breather hose (1) into the housing (5).

Place the filter element (2) into the housing.

Fit the cover (3) and lock with the clips (9).

Connect the coil connector to the wiring harness.

Refit the fuel tank (Sect. L 2, Refitting the plastic fuel tank).

Oil breather tank to air box hose routing
