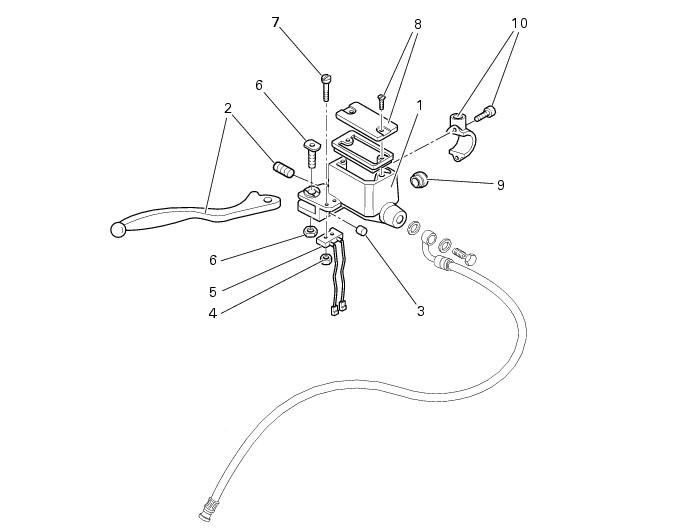

Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear in the figures near the text.

Critical safety components. The brake master cylinder manufacturer recommends that you do not attempt to service the internal components of the brake master cylinder. Incorrect overhaul of these critical safety components can endanger rider and passenger safety.

Please refer to the exploded view at the beginning of this section for indications on disassembly of master cylinder (1) components.

Fit the two screws of the clamp (10) securing front brake master cylinder to the handlebar. Tighten U-bolt (10) screws to the specified torque (Sect. C 3, Frame torque settings) starting from the top one, indicated with an arrow, and then proceeding in a 1-2-1 sequence. If hose (C) has been disturbed, follow indications as specified under Sect. G 3, Refitting the front brake system.
