In the event of a fault, the internal connections of the device must be checked in all operating positions. To do this, disconnect the switch connector from main wiring (Sect. P 1, Arrangement of wiring on frame).

Test the switch using either an analogue or digital MULTIMETER (Sect. P 9, How to use the multimeter to check electric systems).

The same test may be done using the “DDS” tester (Sect. D 5, DDS diagnosis instrument).

Colours mentioned in the descriptions refer to the colour of wires from the switch and not to the colour of wires of the main electric system.

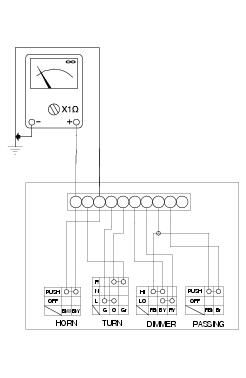

Connect the terminals of a multimeter with Black/White and Black/Yellow cables to check for electric continuity, which must be available when HORN is pressed (see Sect. P 9, "Testers" on multimeter operation). When HORN button is pressed, resistance value taken by the multimeter should be close to zero and, if available, a continuity beep should be heard. When HORN is not pressed, the resistance value should be infinite (no continuity is available as electric contacts into the button are open) and no continuity beep should be heard. If the above does not apply, the part should be replaced.

Connect the multimeter to Orange and Grey wires from the turn indicator switch and check for electric continuity when operating the right turn indicator (Sect. P 9, "Testers" on multimeter operation). Repeat the above procedure for the left turn indicator but connect the multimeter with Green and Orange cables. Colours mentioned in the descriptions refer to the colour of wires from the switch and not to the colour of wires of the main electric system.

Low beam (LO)

(Red/Black and Blue/Yellow cables).

Check for continuity across the Red/Black and Grey cables.

Fit the left switch, tighten the screws (1) to the specified torque (Sect. C 3, Frame torque settings).

Colours mentioned in the descriptions refer to the colour of wires from the switch and not to the colour of wires of the main electric system.

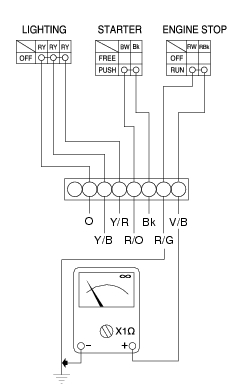

Check for continuity between (Red/Black and Red/White) cables with a multimeter (Sect. P 9 on multimeter operation). When the button is in run mode, electric continuity should be available between the two cables. When the button is in off mode, no electric continuity should be available between the two cables.

If the above does not apply, the engine stop switch is defective and should be replaced. Colours mentioned in the descriptions refer to the colour of wires from the switch and not to the colour of wires of the main electric system.

Proceed as described for the engine stop button and check for continuity between (Blue/White and Black) cables when starter button is pressed (see Sect. P 9, Testers on multimeter operation). If the above does not apply, the starter button is defective and should be replaced. Colours mentioned in the descriptions refer to the colour of wires from the switch and not to the colour of wires of the main electric system.

Using the same multimeter (Sect. P 9, Testers, on multimeter operation), check the continuity across the following cables:

(Red/Yellow) cables for the low beam.

Connect the multimeter to (Red/Yellow) cables, then position the switch to low beam mode and continuity between the two cables should be available. If the above does not apply, the light switch should be replaced.

Fit the right switch, tighten the screws (1) to the specified torque (Sect. C 3, Frame torque settings)

Check for electric continuity (Pos. A) between the switch terminals of front STOP switch (1) and rear STOP switch (2) with a multimeter (Sect. P 9, Testerson multimeter operation) when either front or rear brake is enabled. No electric continuity should be available when brakes are not enabled (Pos.B). Replace the checked part if proves to be defective.

Remove the electric terminal connected to the neutral switch. Position the ignition key to ON to switch on the instrument panel and ensure that the light turns on when the terminal is grounded. If the light turns on, the neutral switch should be changed. If the light stays off, turn the ignition key to OFF to switch off the instrument panel and check for electric continuity between neutral switch and engine control unit with a multimeter.

Position the ignition key to ON to switch on the panel and remove the electric terminal from the neutral switch. If the light turns off, the neutral switch should be changed. If the light stays on, turn the ignition key to OFF to switch off the instrument panel and use a multimeter to check whether the section between neutral switch and engine control unit is grounded.

Use the DDS to check that oil pressure into engine oil circuit complies with the specified values (Sect. D 5, Checking engine oil pressure).

If engine oil pressure value is within the allowed operating range and the warning light "engine oil pressure low" on the instrument panel stays off, turn the ignition key to ON still with engine off, disconnect the electric terminal from the pressure sensor and ground it. If the warning light turns on, the sensor should be replaced. If the warning light stays off, use a multimeter and check for electric continuity in the section between sensor and warning light on the instrument panel. Check with ignition key positioned to OFF (instrument panel off).

If engine oil pressure value is within the allowed operating range and the warning light "engine oil pressure low" on the instrument panel stays permanently on, turn the ignition key to ON and start the engine and disconnect the electric terminal from the pressure sensor. If the warning light turns off, the sensor is faulty. If the warning light stays on, use a multimeter and check whether the section between sensor and warning light on the instrument panel is grounded. Check with ignition key positioned to OFF (instrument panel off).

For removing the support (3), please refer to Sect. P 4, Changing the headlight, for the front turn indicators, and to Sect. H 7, Removing the tail light and number plate holder for the rear turn indicators.
